COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

UTES-TS

Request a Quote
Custom Solutions Request

Select Variant

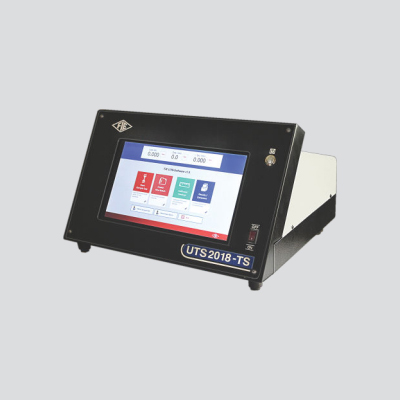

Computerized Touch Screen Control Panel (Series : UTS 2018-TS)

Micro Controller based panel incorporating state of art technology with following features:

  • Front panel Touchscreen Display.
  • Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
  • Online graph of load Vs Displacement directly on screen.
  • USB Printer port for printer interface with graph & result print out.
  • Facility to export the result/ Data to PDF, EXCEL & CSV formats.
  • windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.

Features - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS



  • Loading accuracy as high as + 1%
  • Servo controlled Motorized Valve incorporating of control modes - Standard manual control, Load rate control, Elongation rate control, Load hold mode, Auto start & initial valve open start.
  • Straining at variable speeds to suit a wide range of materials.
  • Windows based touch screen control panel with printing connectivity.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • Simplicity in reading because of digital readouts.
  • Wide range of standard and special accessories.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Fully enclosed and protected pressure transducer.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN & 1000 kN

Application - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

'FIE' Electronic Universal Testing Machine is designed for testing materials and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also conducted.

Straining uni - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

This consists of a cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base.

The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two strengthened columns.

The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured by relieving the cylinder and ram of any possible side loading by the provision of ball seating. An displacement scale, with a minimum graduation of 1mm, is provided to measure the deformation of the specimen.

Tension test is conducted by gripping the test specimen between the upper and lower cross-heads.

Compression, transverse, bending, shear and hardness tests are conducted between the lower cross-head and the table.

The lower cross-head can be raised or lowered rapidly by operating the screwed columns, thus facilitating ease of fixing of the test specimen.

Control Panel - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

The Control Panel consists of a power pack complete with drive motor and an oil tank, control valves and electronic display unit.

Power Pack - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

The power pack generates the maximum pressure of 200 kgf/cm2. The hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth

Hydraulic Controls - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

Hand operated release valve & motorized control valve are used to control the flow to and from the hydraulic cylinder.

The regulation of the oil flow is infinitely variable. Incorporated in the hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement.

Control by this valve allows extensometer reading to be taken.

Model : UTES-TS - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

UTM right control valve is Servo Controlled in close loop mode as per mode selection. Following control modes available

1) Standard Manual control

2) Load rate control

3) Elongation rate control

4) Load hold mode

Also Auto start, Potentometric start &initial value open start options are available for test start to take care of slippage & different specimen types.

Load is applied by a hydrostatically lubricated ram.

Main cylinder pressure is transmitted to the pressure transducer housed in the control panel.

The transducer gives the signal to the electronic display unit, corresponding to the load exerted by the main ram.

Simultaneously the encoder fitted on the straining unit gives the mechanical displacement.

Accuracy and Calibration - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS

FIE Electronic Universal Testing Machine is closely controlled for sensitivity, accuracy and calibration during every stage of manufacture.

Machine is calibrated over each of its measuring range in accordance with the procedure laid down in British standards 1610: Part1: 1992 and IS 1828: Part1: 1991.

FIE Electronic Universal Testing Machine complies with Grade “A” of - BS: 1610:Part1:1992 and class 1 of IS-1828-Part1:1991.

Technical Specifications - COMPUTERIZED TOUCH-SCREEN CONTROL UTM UTES-TS



MODEL UNIT UTES-TS 10 UTES-TS 20 UTES-TS 40 UTES-TS 60 UTES-TS 100 UTES-TS 120 UTES-TS 150 UTES-TS 200
Maximum Capacity kN 100 200 400 600 1000 1200 1500 2000
Measuring range N 0-100 0-200 0-400 0-600 0-1000 0-1200 0-1500 0-2000
Load resolution (20000 counts full scale) N 5 10 20 30 50 60 75 100
Load range with accuracy of Measurement ±1% kN 2 to 100 4 to 200 8 to 400 12 to 600 20 to 1000 24-1200 30-1500 40-2000
Resolution of piston movement (Displacement) mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Clearance for tensile test (At fully descended working piston) mm 50-700 50-700 50-700 50-800 50-850 50-850 50-850 50-850
Clearance for compression test (At fully descended working piston) mm 0-700 0-700 0-700 0-800 0-850 0-850 0-850 0-850
Clearance between columns mm 500 500 500 600 750 750 750 750
Ram Stroke mm 150 200 200 250 250 250 250 250
Straining/Piston Speed (at no load) mm/min 0-300 0-150 0-150 0-100 0-80 0-65 0-50 0-45
CONNECTED LOAD
Power HP 1.33 1.33 2.33 2.5 4 4 5 6
V 400-440 400-440 400-440 400-440 400-440 400-440 400-440 400-440 400-440
∅ 3 3 3 3 3 3 3 3 3
Standard Accessories
FOR TENSION TEST
Clamping jaws for round specimens of diameter
mm 10-20 10-20 10-25 10-25 10-25 10-25 10-25 10-25
mm 20-30 20-30 25-40 25-40 25-45 25-45 25-45 25-45 25-45
Clamping jaws for flat specimens of thickness
mm 0-10 0-10 0-15 0-15 0-22 0-20 0-20 0-20
mm 10-20 10-20 15-30 15-30 22-44 20-40 20-40 20-40
Width mm 50 50 65 70 70 70 70 70
FOR COMPRESSION TEST
Pair of Compression Plates of diameter mm 120 120 120 120 160 160 160 160
FOR TRANSVERSE TEST
Table with adjustable rollers
Width of rollers mm 160 160 160 160 160 160 200 200
Diameter of rollers mm 30 30 30 50 50 50 50 50
Maximum clearance between supports mm 500 500 500 600 800 800 800 800
Radius of punch tops mm 6,12 6,12 6,12 12,16 16,22 16,22 16,22 16,22

Due to constant R& D specifications & features are subject to change without notice.
